Conventional horizontal boring mill W100A

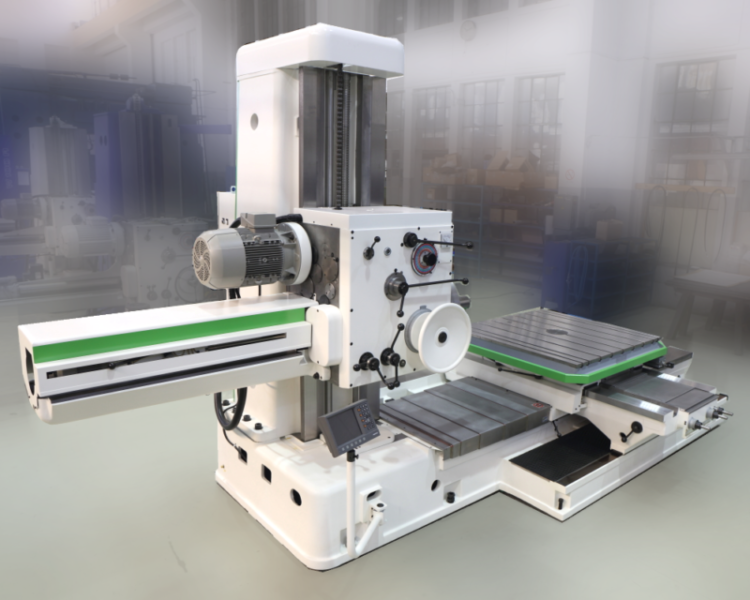

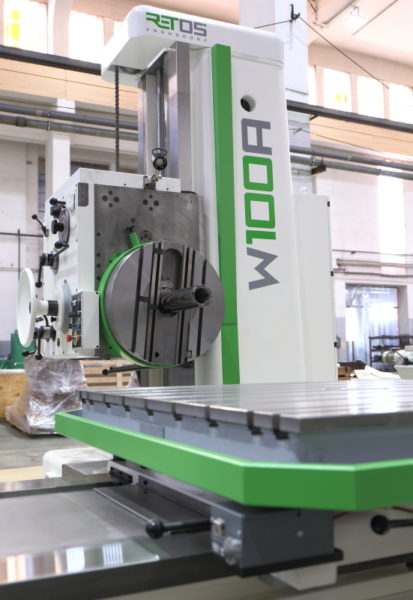

W100A – Conventional horizontal boring mill with fixed column and crosswise travelling table. Have four linear axes plus rotary table. Machine designed for piece and low-volume engineering production, suitable for roughing as well as for finishing. Travel in the X axis = 1600 mm.

Features

  • manually controlled horizontal boring machine
  • fixed column, crosswise travelling table
  • 4 linear axes, rotary table
  • sliding workspindle

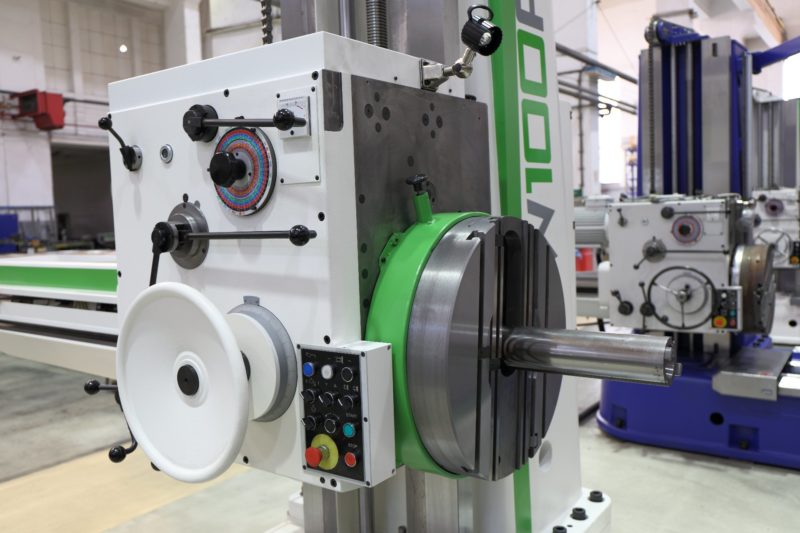

  • facing head with tool slide
  • machine designed for piece and low-volume engineering production
  • suitable for roughing as well as for finishing
  • digital optical admeasuring of linear axes and table rotation with DROs
  • optionally can be fitted by f.e. tool cooling kit (CHZ), outboard support, spindle clamping / guiding support, rectangular milling head etc.

Configuration

Travelling Groups

  • X – travel of rotary table slide on saddle
  • Z – travel of saddle on bed
  • Y – vertical headstock travel on column
  • W – spindle stroke
  • U – travel of tool slide of facing head
  • B – table rotation
  • S – rotation of workspindle and facing head

Group Guidance

  • guideways on all linear axes are ground, counterways with synthetic casting
  • guideways on bed and saddle reinforced with hardened steel plates
  • guideways of rotary table and facing head are scrapped

Lubrication

  • HYTOS lubrication set
  • central, time powered by PLC in electric cabinet
  • lubricates X, Y, Z, W, B axes
  • U axis lubricated by grease nipples

Clamping

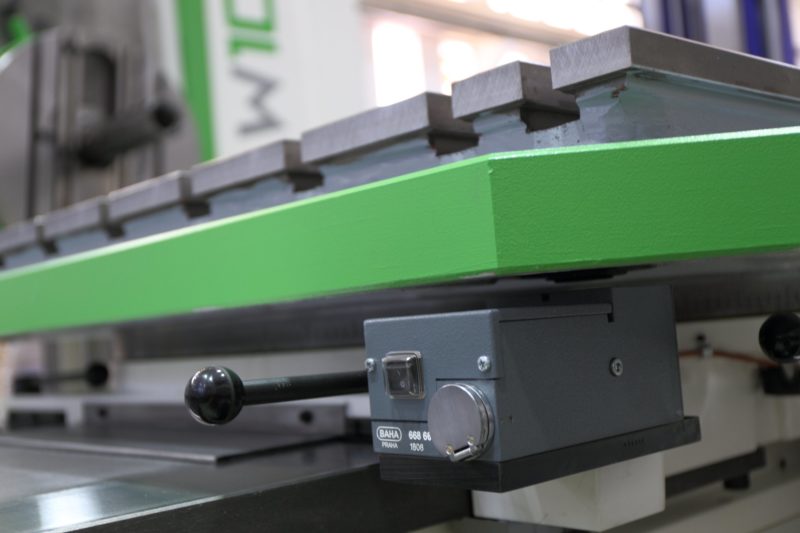

  • X, Y, Z, W, B axes – manually by levers

Optional accessories

  • portable control panel PP-100 (necessary to order together with the machine)
  • outboard support
  • CHZ-100 tool cooling kit
  • PVD100-550 spindle guiding support
  • SP100 spindle clamping support
  • spindle clamping support up to 800 rpm
  • FP40-100 rectangular milling head
  • UFP40-100 universal milling head
  • change gear kit for thread cutting
  • TD50 telescopic tool holder
  • VT80-2500-ISO50 smooth boring bar
  • VT80-3150-ISO50 smooth boring bar
  • VT100-2500-ISO50 smooth boring bar
  • VT100-3150-ISO50 smooth boring bar
  • LLK-150/80 sliding bush of the outboard support
  • LLK-150/100 sliding bush of the outboard support
  • VH80 three-tool boring head
  • VH80-100 three-tool boring head
  • VHU-ISO50 universal boring head
  • UK500 clamping cube
  • UU800, UU950, UU1120 clamping angle plates
  • spares kit for 3-year operation
  • 2D touch probe KT 130 HEIDENHAIN
  • transport bars (in the container necessary)
