Horizontal milling and boring machine WHN 110 CNC

WHN 110 (Q, MC)

Horizontal milling and boring machine WHN 110 CNC

WHN 110 CNC – milling and boring machines are powerfu advanced generation, which responds to the needs of modern progressive technology. The machines are produced in a cross arrangement of the beds, with a longitudinally adjustable stand, a traversing spindle and cross-wise adjustable rotary table.

  • WHN 110 – the basic model
  • WHN 110 Q – the Automatic Tool Changer (ATC) equipped model
  • WHN 110 MC – the Automatic Pallet Changer (APC) equipped model
  • leading edge technology machine corresponding with the needs of the up-to-date progressive machining
  • effective universal chip removal machining of non-rotary workpieces of larger size and weight, employing the partprograms of the most progressive technological features
  • modular design offers a chance to choose from a broad range of optional travel tenghts in all axes. This provides the customers with a possibility to choose for themselves a machine that suits their needs the most
  • either SINUMERIK 840D SL, HEIDENHAIN TNC 640 or FANUC 31i control system can be selected for controlling the machine
  • on the customer’s wish the machine can be supplied also in design „BASIC“ with modified technical parameters

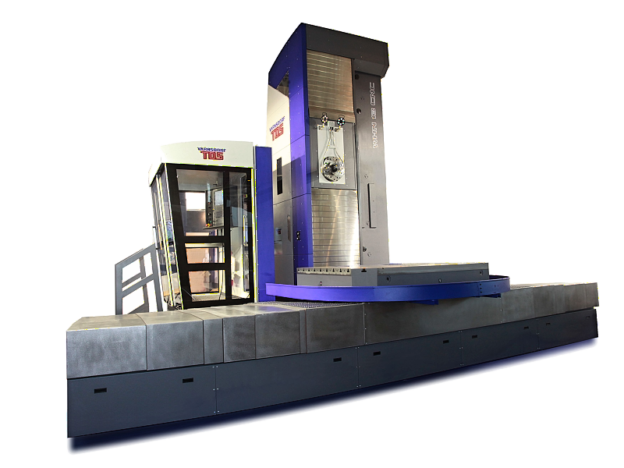

WHN(Q) 13/15 CNC

Horizontal milling and boring machine WHN (Q) 13/15 CNC

WHN (Q) 13/15 CNC – The horizontal milling and boring machine is a universal machine designed for precise milling, line-coordinate drilling, boring and thread cutting of box- and board-type workpieces as well as complicated workpieces from cast-iron, steel cast-iron and steel with the weight of up to 25,000 kg. The success of this machine can be documented by the fact that almost 2,500 of these machines have been made up to now. It particularly excels in the ratio between capacity and the purchasing costs. The users value the structure of the machine, which guarantees high rigidity and reliability as well as high technical parameters and a broad range and comfort of the technological features. The machine can be supplemented with a series of options, which greatly extend the machine‘s potentialities.

  • WHN 13/15 CNC – the basic model
  • WHQ 13/15 CNC – the Automatic Tool Changer (ATC) equipped model
  • WHN 13/15 MC – the full-fledged machining center equipped with both, ATC and APC
  • the most successful machine  (more than 2,000 produced machines)
  • universal machine tool for precise milling, coordinate boring, the boring and cutting of box and plate plate screws and comlicated workpieces with weight of up to 25,000 kg
  • machine can be extended with a wide selection of technological accessories that significantly widen the machine technological utility value
  • either SINUMERIK 840 D SL, HEIDENHAIN TNC 640 or FANUC 31i control system can be selected for controlling the machine
Milling and boring machine WHN 130 (Q, MC)

WHN 130 (Q, MC)

Milling and boring machine WHN 130 (Q, MC)

WHN 130 (Q, MC) – milling and boring machines are powerful, advanced generation, which responds to the needs of modern progressive technology. The machines are produced in a cross arrangement of the beds, with a longitudinally adjustable stand, a traversing spindle and cross-wise adjustable rotary table.

  • leading edge technology machine corresponding with the needs of the up-to-date progressive machining
  • effective universal chip removal machining of non-rotary workpieces of larger size and weight, employing the partprograms of the most progressive technological features
  • modular design offers a chance to choose from a broad range of optional travel tenghts in all axes. This provides the customers with a possibility to choose for themselves a machine that suits their needs the most
  • either SINUMERIK 840D, HEIDENHAIN TNC 640 or FANUC 31icontrol system can be selected for controlling the machine

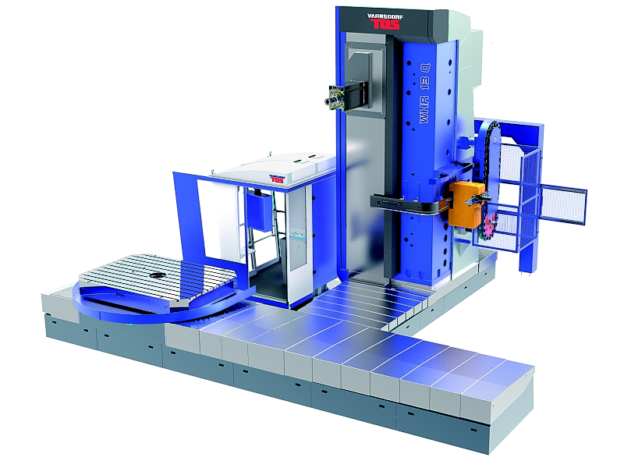

Horizontal boring machine WHR13(Q)

WHR 13 (Q)

Horizontal boring machine WHR13(Q)

WHR 13 (Q) – the latest representative of horizontal table-type boring machines WHR 13 (Q). The WHR 13 (Q) has been developed from the most successful generation of table-type WHN 13 CNC machines, which have reached customers all around the world over the past few decades (more than 2,500 of all versions and types of WHN 13 have  been sold) and they are still popular and in high demand. The WHN 13 CNC machines have become a standard for all machines in this category through their unique properties, reliability and power parameters. The horizontal boring machine WHR 13 (Q) takes the best from its predecessor and, using the most modern technology, represents another step forward in its class.

  • WHR 13 (Q) is horizontal boring and milling machine which are offered with spindle diameter 130 mm.
  • The machines are continuously controlled in five axes (X – base cross travelling, Y – headstock vertical adjustment, V – RAM longitudinal travel, Z longitudinal travel of the column and W – working spindle longitudinal travel).
  • machine can be extended with a wide selection of technological accessories that significantly widen the machine technological utility value
  • HEIDENHAIN TNC 640, Sinumerik 840 D SL or FANUC 31i control system can be selected for controlling the machine.

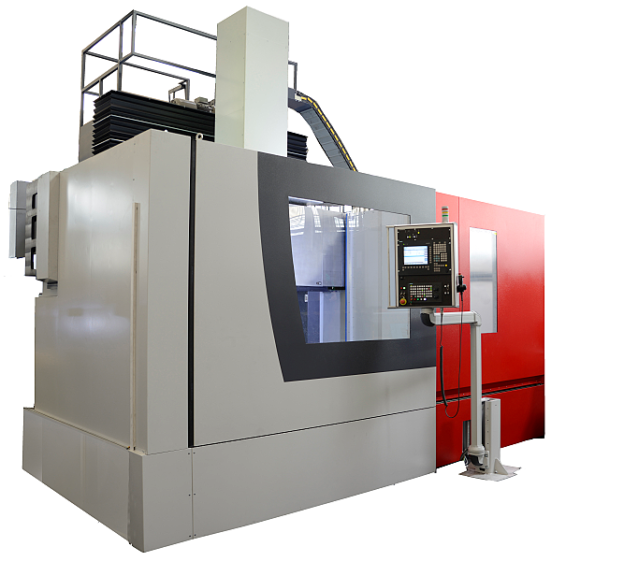

vertical turning lathe BASICTURN TOSHULIN

BASICTURN

Vertical turning lathe BASICTURN – stable machining solution

The BASICTURN vertical turning lathe is a proven machine developed by TOSHULIN a.s., built on decades of experience in advanced machine tool engineering. It is designed for precision machining of large workpieces with turning diameters ranging from 1,250 to 4,000 mm, even in demanding industrial applications.

Its rigid and highly stable structure ensures excellent machining accuracy, long‑term reliability, and consistent performance in heavy-duty production environments.

Vertical turning lathe BASICTURN – machining technologies

The machine is primarily designed for turning operations, but can also be equipped to perform additional chip‑removal processes such as milling, drilling, and grinding. This versatility allows it to function as a complete machining solution, enabling efficient part finishing in a single setup.

BASICTURN vertical turning lathe – NC axes

In the standard configuration, the machine operates with two NC-controlled axes:

  • X-axis – horizontal cross travel of the slide
  • Z-axis – vertical travel of the ram support

For more advanced applications, an optional C-axis can be integrated. This feature enables precise positioning and controlled rotation of the table, supporting more complex machining tasks.

Extended functionality with rotary tools

The machine can be equipped with a rotary tool drive, enabling:

  • drilling outside the table rotation axis
  • tapping operations beyond the central axis
  • milling of complex shapes perpendicular to the table surface
  • grinding operations depending on configuration

A fixed angular head allows standard drilling and milling operations, while an adjustable angular head enables machining at various angles (within defined limits). The angular head is not compatible with automatic tool change.

BASICTURN vertical turning lathe – control system

The machine is available with Siemens or Fanuc control systems, depending on customer requirements.

Remote diagnostics can be integrated as an optional feature, allowing fast communication and efficient troubleshooting. This solution significantly reduces downtime and enables quicker fault identification.

Machine design and operation

The design focuses on long-term accuracy, reliability, and ease of operation. The rigid frame ensures high stability, while the overall concept emphasizes user-friendly operation and simplified maintenance.

Key advantages

  • high structural rigidity and stability
  • reliable performance in heavy-duty applications
  • Siemens or Fanuc control systems
  • optional C-axis and rotary tool integration
  • automatic tool change capability
  • adjustable working area height
  • modern and intuitive operator interface

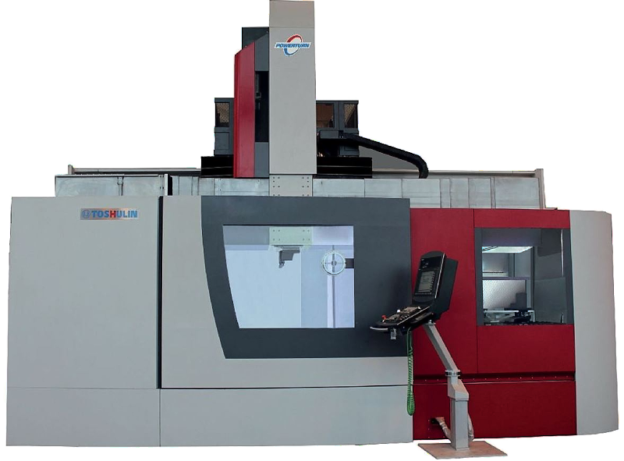

Vertical turning lathe Powerturn

POWERTURN

Vertical turning lathe POWERTURN – high‑performance solution

The vertical turning lathe POWERTURN is a high-performance machine developed by TOSHULIN a.s., based on long-term experience in modern engineering solutions. It is designed for high‑precision machining of large workpieces in demanding industrial applications.

The machine features a highly rigid and stable structure, enabling accurate machining of components with turning diameters from 800 to 4,000 mm.

Machining capabilities of the POWERTURN machine

The core technology is turning, complemented by additional machining processes such as:

  • milling
  • drilling
  • grinding

Thanks to this versatility, the system can operate as a universal vertical machining center and complete complex parts in a single setup.

Control system and diagnostics

The machine can be equipped with Siemens or Fanuc control systems, depending on customer requirements.

All machines from TOSHULIN a.s. can also be fitted with remote diagnostics, which improves communication and enables faster troubleshooting. This helps significantly reduce downtime and increase service efficiency.

POWERTURN vertical turning lathe – design and equipment

The machine design ensures:

  • high rigidity and operational stability
  • long service life
  • precise guidance even under heavy loads

The POWERTURN lathe is equipped with:

  • 3 controlled axes (X, Z, C)
  • precise table positioning (C‑axis)
  • high‑performance rotary tool drive
  • automatic tool changer (up to 75 tools)

Standard machine configuration

The standard configuration includes:

  • Siemens Sinumerik 840 D SL
  • 60 kW AC main drive motor
  • AC servo drives in X, Z and C axes
  • table speed range 2–250 rpm
  • rotary tool drive 22 kW
  • 4‑jaw manual chuck table
  • extended ram stroke and column height
  • automatic tool changer
  • chip conveyor
  • Renishaw measurement probe
  • high‑pressure cooling up to 20 bar
  • filtration system
  • high positioning accuracy
  • remote diagnostics
  • full technical documentation

Options and expandability of the POWERTURN lathe

The machine can be customized with:

  • pallet changing systems
  • extraction and filtration systems
  • enclosed working area
  • a wide range of accessories

This allows precise adaptation to specific production requirements.

Key advantages

  • rigid and stable machine structure
  • precise table positioning
  • powerful rotary tools
  • complete machining in one setup
  • Siemens or Fanuc control
  • remote diagnostics
  • high‑pressure cooling system
  • wide range of accessories
  • modern and intuitive operation
turning machine TOSHULIN

FORCETURN

Vertical turning lathe FORCETURN

FORCETURN – is traditional vertical turning lathe and vertical machining center based on years of experience with the implementation of state-of-the-art solutions manufactured by TOSHULIN JSC. The vertical turning lathes preference is very stable construction and precision machining of the 2500 to 4000 mm diameters, precisely according to the customer’s individual needs – even in the most demanding applications. The machine can integrate various chip machining technologies, including turning, milling, grinding or drilling. The rigid cast iron construction of the bed, cross rail and column makes it suitable for high accuracy work as well as very heavy duty turning and milling.

As a result of a unique 65- years tradition and know-how in designing and building Vertical Turning Machines, combined with integrating advanced electric and electronic components made by Siemens or Fanuc, TOSHULIN provides to its valued customers a superior quality machines with a proven long lasting accuracy and reliability. All vertical turning centers from TOSHULIN a.s. can be equipped with remote machine diagnostics, which helps  with the customer diagnosing and correcting most faults of the machine. This is the fastest possible way of detecting the cause of a fault on a machine (80-90% efficiency in solving the problem). A wide sortiment of accessories and extras.

Machine Frame

Made of cast iron. One column securely mounted and attached to the table base. Thermo-stable design; build up table base and the main drive centrally located relative to the column.

Table Base

Made of cast iron. Table bearing system with preloaded bearing. Table oriented stop with the main drive motor operating as a servo unit. Thermal stabilisation of the table by means of lubrication oil cooling unit.

  • High-performance work in large dimensions
  • Possible machining of high and heavy workpieces
  • Highly stable frame made from the cast iron for high-performance machining
  • Possibility of high-pressure cooling
  • Wide variability of instrumental equipment
  • Premium range is in the X axis in both directions from the center of the clamping plates
  • Effective coverage of the machine to prevent spattering of the coolant

EXPERTURN 2000 S

Special ring cutting machine EXPERTURN 2000 S

EXPERTURN 2000 S – a special ring cutting machine with a completely new design and unique clamping workpiece. Cutting technology is realized with a circular saw blade. The machine has two cross slides made from weldments and pedestal. Special constuction of machine offer a large range of workpiece sizes. A patent application was submitted.

Intuitive software for simple machine handling.

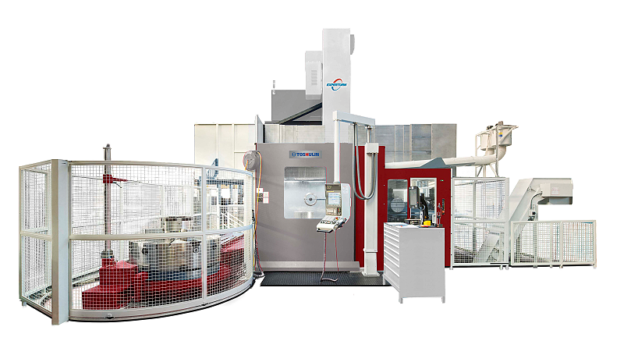

Vertical turning lathe EXPERTURN

EXPERTURN

Vertical turning lathe EXPERTURN

EXPERTURN – is traditional vertical turning lathe and vertical machining center based on years of experience with the implementation of state-of-the-art solutions manufactured by TOSHULIN JSC. The vertical turning lathes preference is very stable construction and precision machining of the 800 to 4000 mm diameters, precisely according to the customer’s individual needs – even in the most demanding applications. The machine can integrate various chip machining technologies, including turning, milling, grinding or drilling. The machine can be fitted with a Siemens or Fanuc control system. All vertical turning centers from TOSHULIN a.s. can be equipped with remote machine diagnostics, which helps  with the customer diagnosing and correcting most faults of the machine. This is the fastest possible way of detecting the cause of a fault on a machine (80-90% efficiency in solving the problem). A wide sortiment of accessories and extras.

  • Extraordinarily rigid and stable machine frame from cast iron or HSC concrete
  • Ram designed for high-efficient machining
  • Very precise table positioning (C-axis) and rotary tool drive with high power output
  • Optional hydrostatic guiding in linear axes
  • Table bearing – optionally hydrostatic system / cross bearing
  • Possibility to complete machine configuration with the controlled Y-axis
