MCV 1060 is a highly efficient vertical machining centre that enables a wide range of heavy duty and high-speed machining technologies. The MCV 1060 centre is formed by a base and fixed column - two solid and stable stationary cast iron castings.
Request

Efficient vertical machining centre MCV 1060

MCV 1060 is a highly efficient vertical machining centre that enables a wide range of heavy duty and high-speed machining technologies. The MCV 1060 centre is formed by a base and fixed column – two solid and stable stationary cast iron castings. Through a linear guide ways with rolling elements, all machine movements are realized. Their dimensions and design permit high workload of the table, saddle and spindle head, at the same time preserving very high accuracy of the workpiece even when the cut is interrupted, as well as long service life and reliability of the machine. Maximum allowable table load with work area of ​​1320 x 620 mm makes it possible to clamp the part up to 1350 kg. Machine functions are controlled by CNC control system HEIDENHAIN, SIEMENS or FANUC.

The machine is suitable for complex precision machining processes. Massive cast iron construction provides superior damping capacity. The customer has advantage to select Heidenhain iTNC640 or SIEMENS SINUMERIK 840D, both of them are excellent top of the art CNC, useable for cutting and contouring, allowing to cut processing time to the minimum and keep a part within specified accuracy. These CNC´s offer optimum, complete digital solution with SIMODRIVE 611 D (digital).

The machine in standard execution is equipped with digital drives, linear opto-electric absolute rulers, central lubrication system, ATC with feeding hand, automatic tool holder blowing, cooling unit with tool cooling system, rinsing of telescopic covers and electronic thermal dilatation compensation.

Machine configuration

  • Heidenhain iTNC 640 or Siemens 840 D control or Fanuc 31i
  • Siemens Simodrive 611 digital
  • 30 tool pockets ISO 40,CAT 40, BT 40 24 tool pocket ISO, CAT 50, BT 50 side mount double arm automatic tool changer
  • Direct feedback – scales
  • 12000 RPM spindle – 40 taper, 8000 RPM spindle – 50 taper
  • Electronic Thermal Compensation
  • Flood coolant
  • Machine enclosure
  • Full protection (fence) guarding of allr moving items on the machine
  • All electrical devices complies with CE, or are UL /CSA approved or listed
  • Fluorescent work light
  • Chip conveyor
  • Tool air blast

Optional Equipment:

  • Planetary gearbox
  • Spindle speed 10.000 RPM, ISO 40, 28KW, 342Nm,( pl.gearbox only)
  • Spindle speed 8.000 RPM, ISO 50, 30KW, 458Nm, ( pl.gearbox only)
  • Electrical spindle 15.000 RPM, ISO 40 25/31 kW (159/197Nm)
  • Electrospindle unit 18 000 rpm,20 kW, HSK-A63, ATC double arm 1×30
  • Preparation for coolant thru spindle – 70 bars
  • Coolant through70 bars aggregate + Filtration unit Chip Blaster
  • Coolant through 70 bas aggregate + Filtration unit Chip Blaster – keeping steady 70 bars pressure 70 bar regardless diameter of hole through tool
  • Coolant through 20 bars aggregate + Filtration unit – flow through filter
  • Coolant through tool – Air
  • Double Gifu ATC – 60 tools
  • Tool checking probe Heidenhain TT 140
  • Part probe Renishaw OMP 60 – optic
  • Part probe Renishaw RMP 60 – rádio
  • Dual set part and tool probe Renishaw OMP 60-2 + OTS
  • Part probe – Heidenhain TS 640 + SE 640
  • Upper wash system
  • Automatic pallet changer
  • Coolant mist collector Filtermist
  • Microlubrication systém Accu-lube Minibooster II for internal lubrication
  • Microlubrication system for external lubrication – 2 external adjustable nozzles
  • Disk oil skimmer
  • Spin window Visiport
  • Spray gun
  • 4th axis preparation kit
  • 5th axis preparation kit
  • BT 40 or BT 50 tooling system

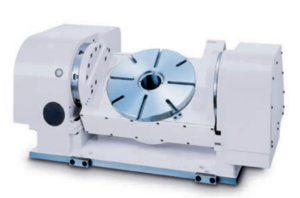

  • Rotary table upon special requirement, recommended Nikken, Tsudakoma – Japan

The machine can be equipped with remote diagnostics, which helps with communication with customer in diagnosing and restoring most failures of the machine.

We offer a wide range of special accessories to the MCV 1060, of course.

MCV 1060 MCV 1060 MCV 1060
